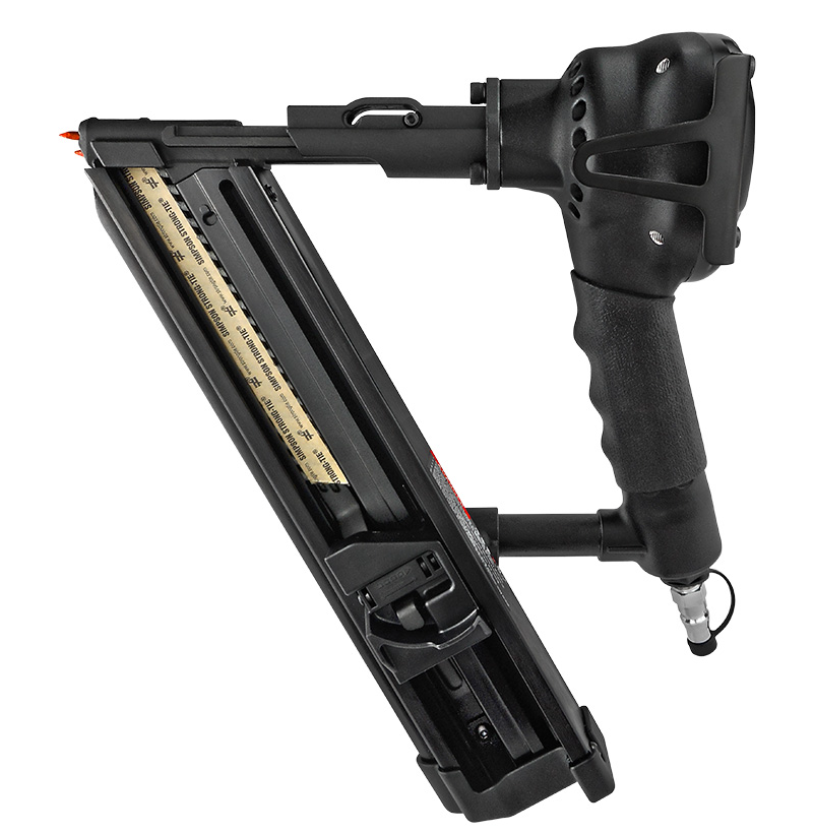

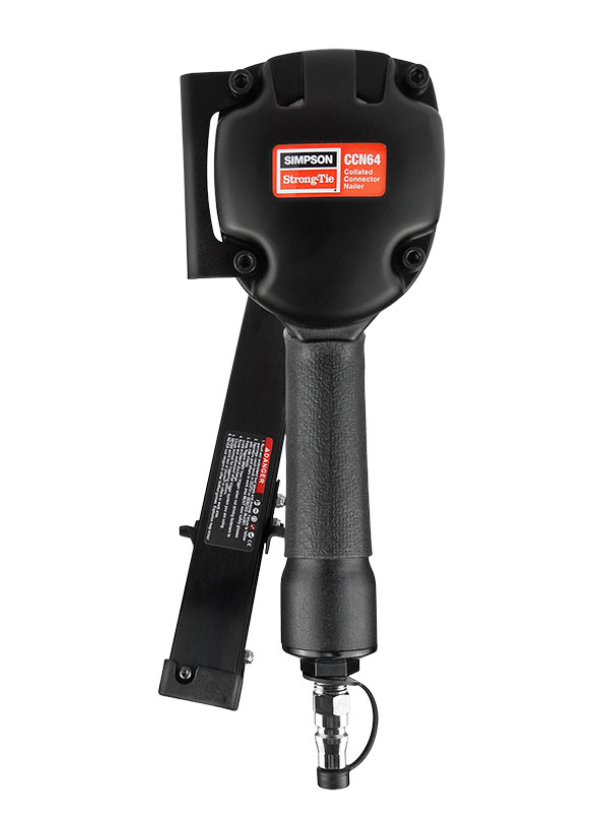

Simpson Pneumatic Collated Connector Nailer

Simpson Pneumatic Collated Connector Nailer

$464.88
$285.00 $464.88
Sale Sold out
Tax included. Shipping calculated at checkout.

* Stock levels will differ between stores, the stock levels shown here are reflective of our Pottsville store.

The CCN64 Collated Connector Nailer helps to ensure the correct installation of connectors through its unique design and is considerably faster than traditional hand nailing. The CCN64 has been designed so that connector nails protrude from the tip of the tool. This allows the user to easily locate the tip of the nail into the connector hole so that the connector will not be damaged. The nails are hammered into the timber via multiple blows which prevents the nail from being overdriven.

With a narrow nose piece and compact design the CCN64 collated connector nailer can reach into those tight spaces for easy connector nailing. At only 2.1 kg the tool is robust but lightweight enough to manoeuvre around the jobsite.

Product Data
  • Dimensions: L305 x W119 x H273 mm
  • Action: Multi-Blow
  • Weight: 2.1kg
  • Operating Pressure: 90–120 psi*
  • Magazine: Single strip (approx. 28 nails)
CCN64 Includes
  • CCN64 tool
  • Operation manual
  • Allen Keys
  • Safety glasses
  • Tool Oil

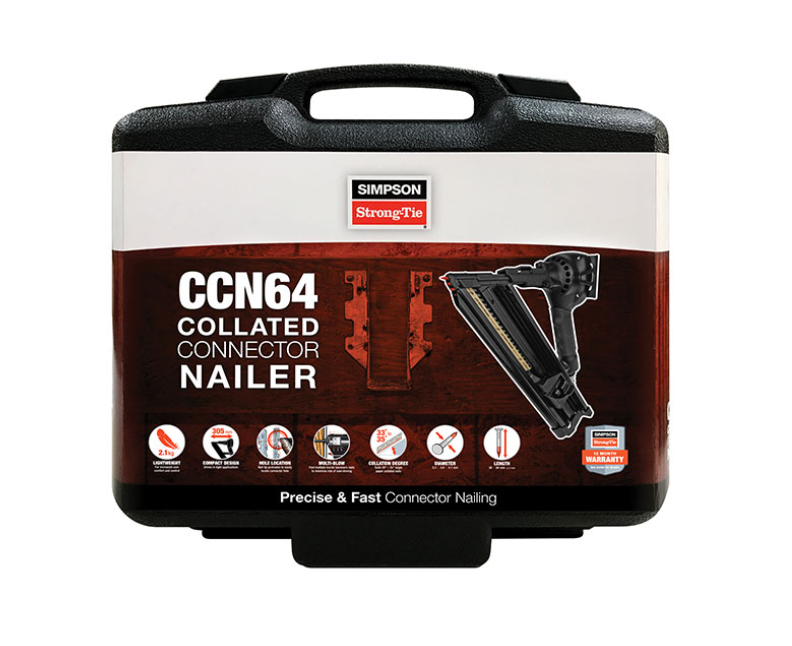

  • Rugged toolbox
Nail Suitability
  • Angle: 33°–35°
  • Collation: Paper tape
  • Head: Full round head
  • Diameter: 3.3  |  3.8  |  4.1mm
  • Length: 38  |  64mm (± 2mm)
  • See page 162 for

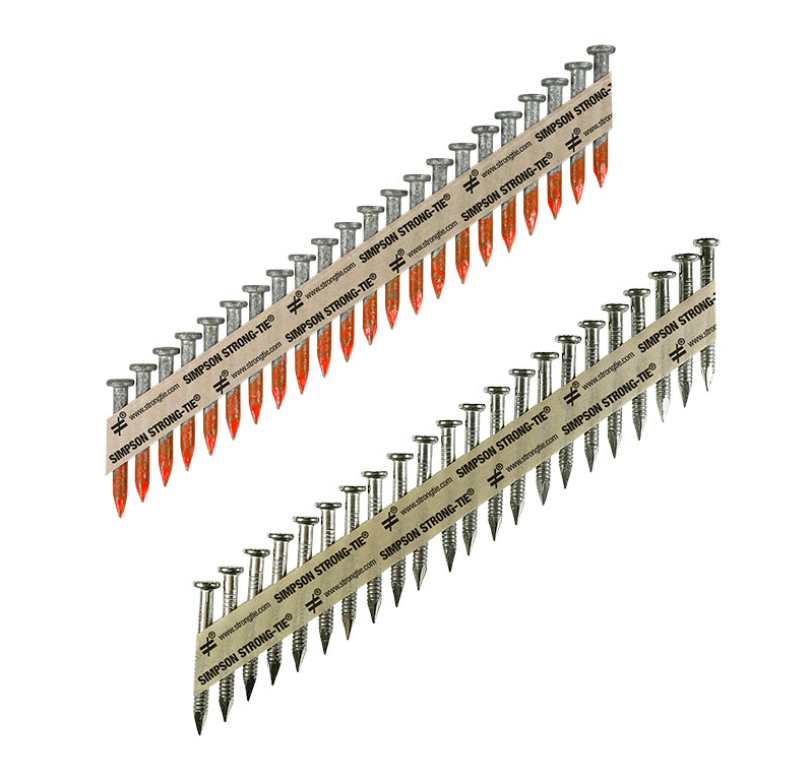

  • Collated Strong-Drive® 33° SCN and SCNR CONNECTOR Nails

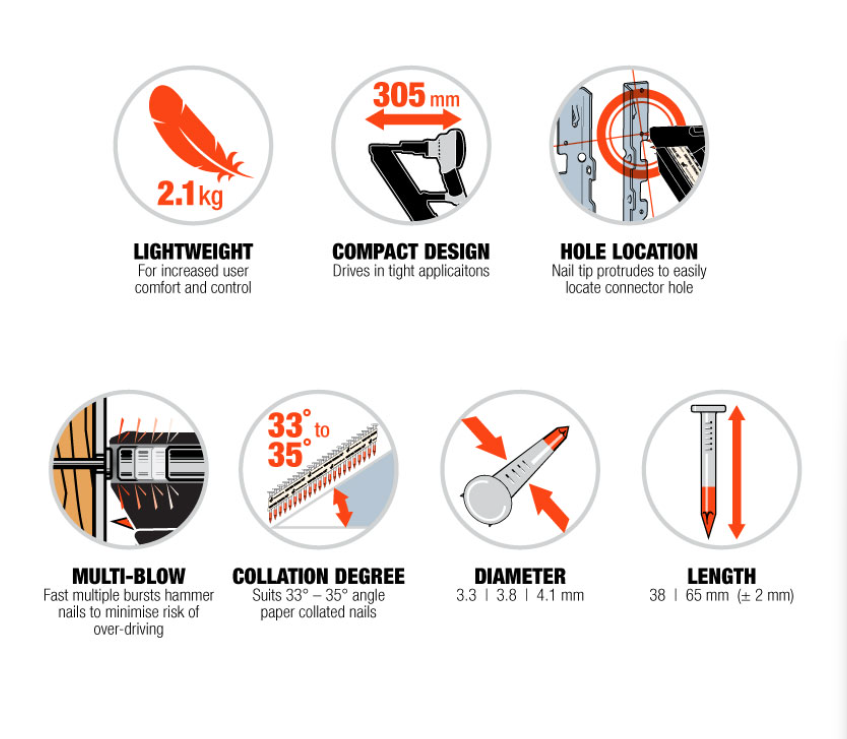

Features & Benefits
  • Helps to ensure the correct installation of connectors
  • Faster than traditional hand nailing
  • Nail tip protrudes to easily locate connector hole
  • Multi-blow action hammers in, and helps prevent the nail from being overdriven
  • Compact design to get into tight spaces
  • Lightweight at only 2.1 kg for increased user comfort
  • Single hand operation
  • Compatiable with our Strong-Drive SCN or SCNR collated connector nails
  • Drives 38mm and 64mm 33° paper tape collated connector nails
